Quartz Products

In the face of increasing difficulties in supplying quartz crystals for strategic applications such as space, defense and medical, CRYSTALINNOV has resumed European production of very high-quality quartz and wafers.

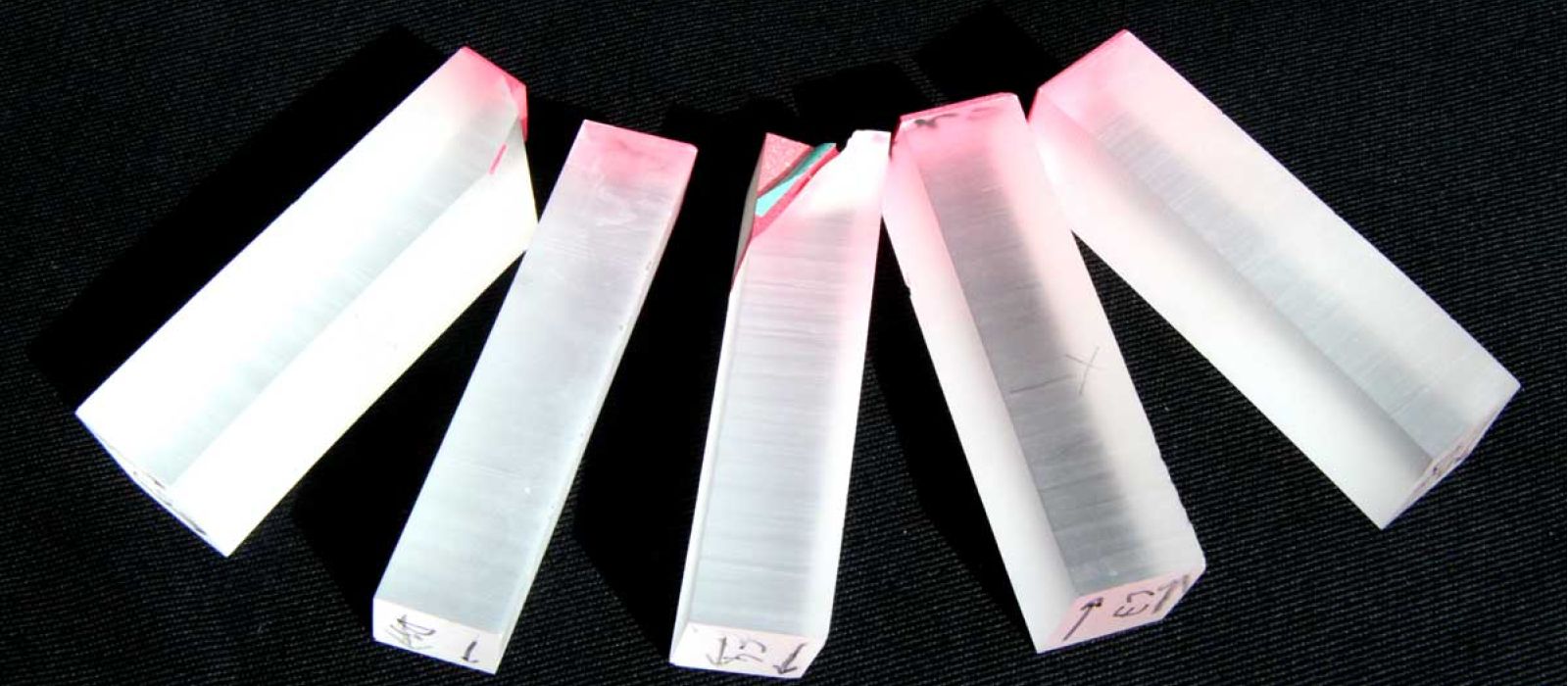

Bars

Bars are from pure Z-zone, with or without seed, Y0, or pre-oriented for a specified cut (AT, SC, other orientation on request, …)

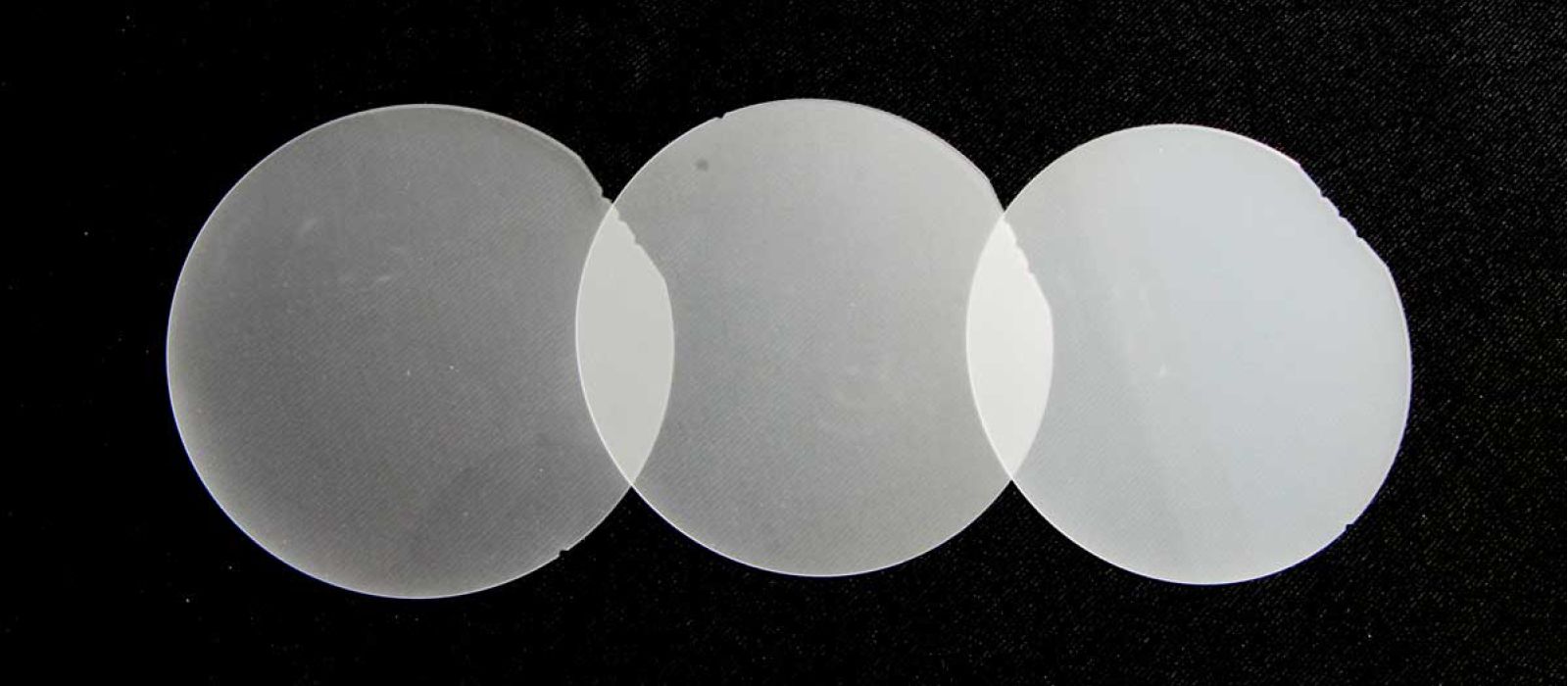

Blanks or wafers

• Cuts (AT, SC, Z, X…)
• Lapped, single side or double side polished
• 5 mm to 100 mm

Customized products

• Very high-quality quartz
• Quality criteria according to IEC 60758 standard

Technical Specifications

Very high-quality quartz : Quality criteria according to IEC 60758 standard
Right-handed quartz only
Infrared extinction coefficient:
by Fourier Transform Infrared (FTIR) spectrometry

α3500cm-1 < 0,026
Equivalent à un
α3585cm-1 < 0,015 ou
α3410cm-1 < 0,075

Grade Aa
Inclusion density:
by visual inspection under high intensity light with index liquid

10 – 30 µm : N < 2
30 - 70 µm : N <1
70 - 100 µm : N <0
> 100 µm : N < 0

Grade 1a
Etch channel density:
by channels counting in an etched AT-cut slice

< 5/cm2

Grade 1
Impurity level:
By mass ICP-MS

Al, Fe, Na, K, Mg, Ca, Li < 0.05 ppm

Dislocation density:
by X-ray topography

< 30/cm2
Quartz technical sheet
Request a quote

Pure Premium Quartz

Very high quality, radiation hardened quartz for high performance devices
Chemical formula

SiO2 Quartz­‐α

Handedness
Right
Density
𝜌=2.65 𝑔/𝑐𝑚^3
Crystal System
Trigonal -Hexagonal
a=4.91 Å - α=90°
b=4.91 Å - β=90°
c=5.41 Å - γ=120°
Mohs Hardness
7
𝑇 Quartz-­‐α > β
573.3°𝐶

Applications

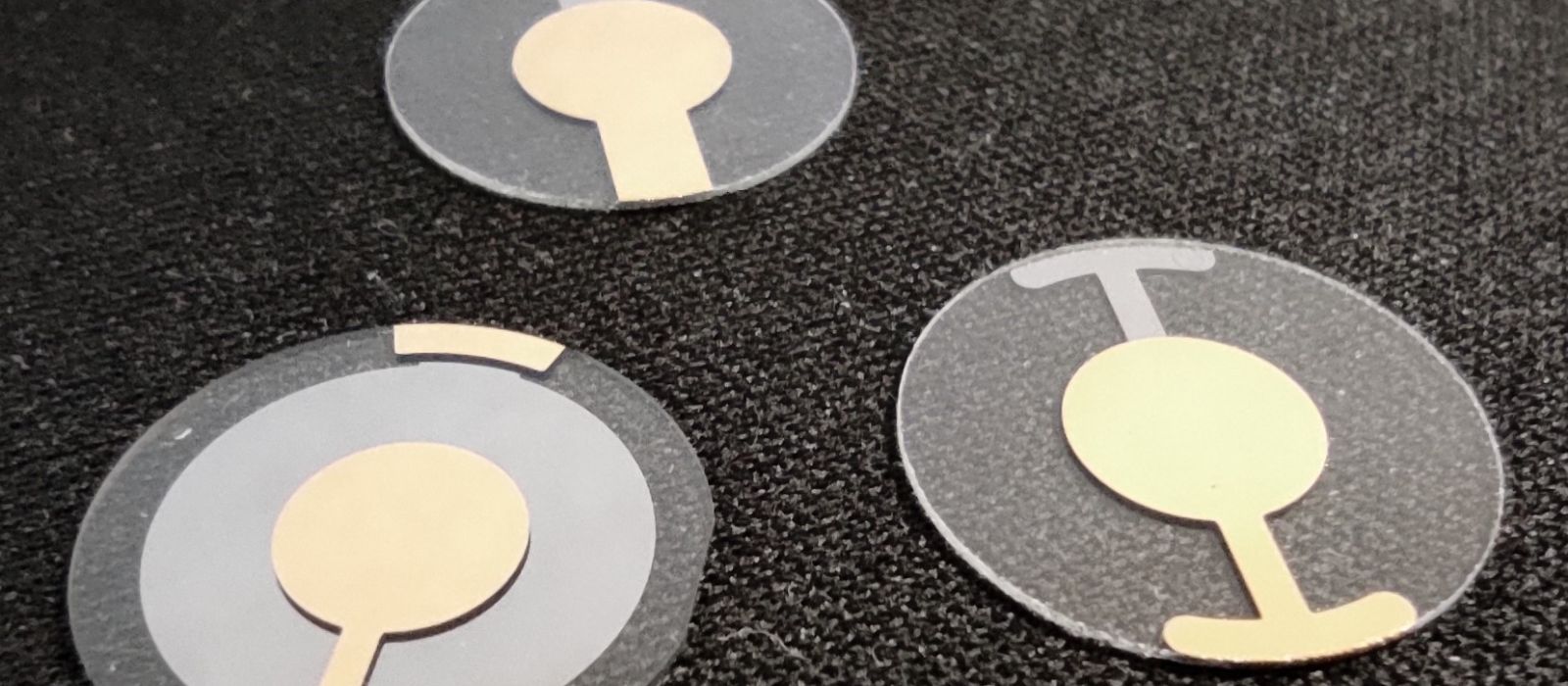

Quartz crystal unit

High precision oscillators

IMU (Inertial Measurement Unit)

PNT (Position, Navigation, Time)

SAW resonators

Sensors and filters

Optical quartz plates

Lenses, prisms…

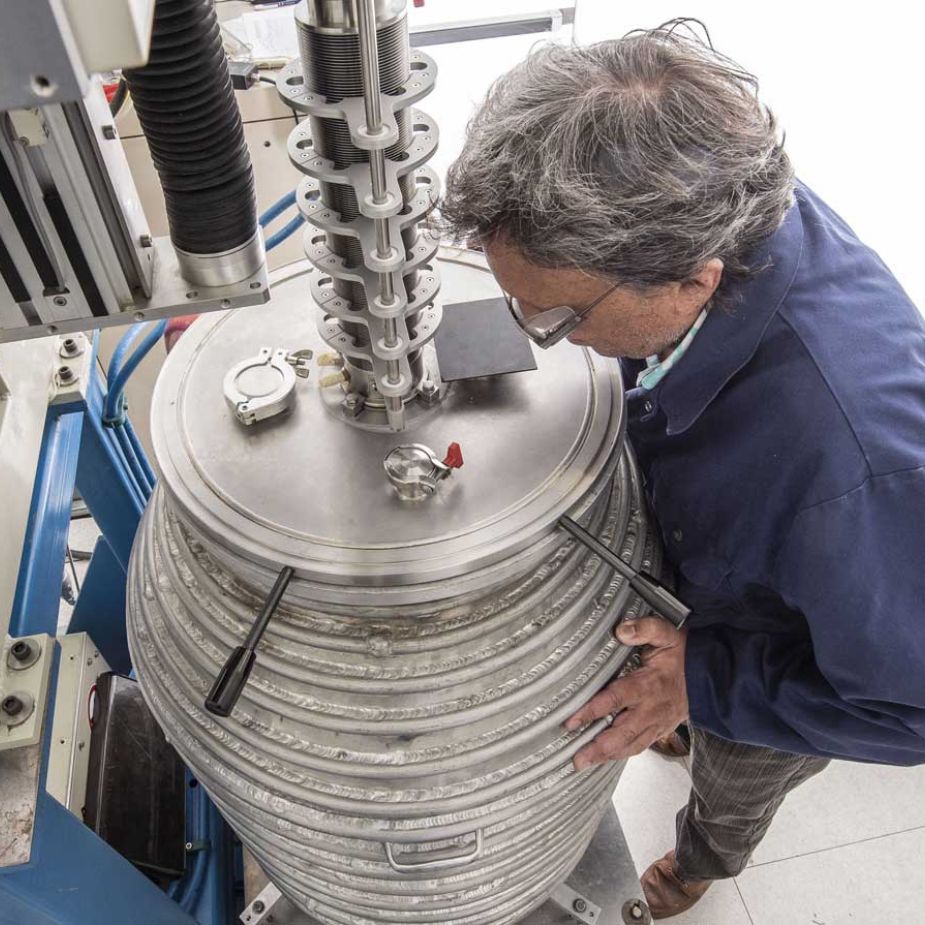

As one of the rare European players mastering multiple crystal growth technologies (Czochralski, Hydrothermal, µPD), we ensure traceable, defect-free crystals designed for strategic applications where performance is critical.

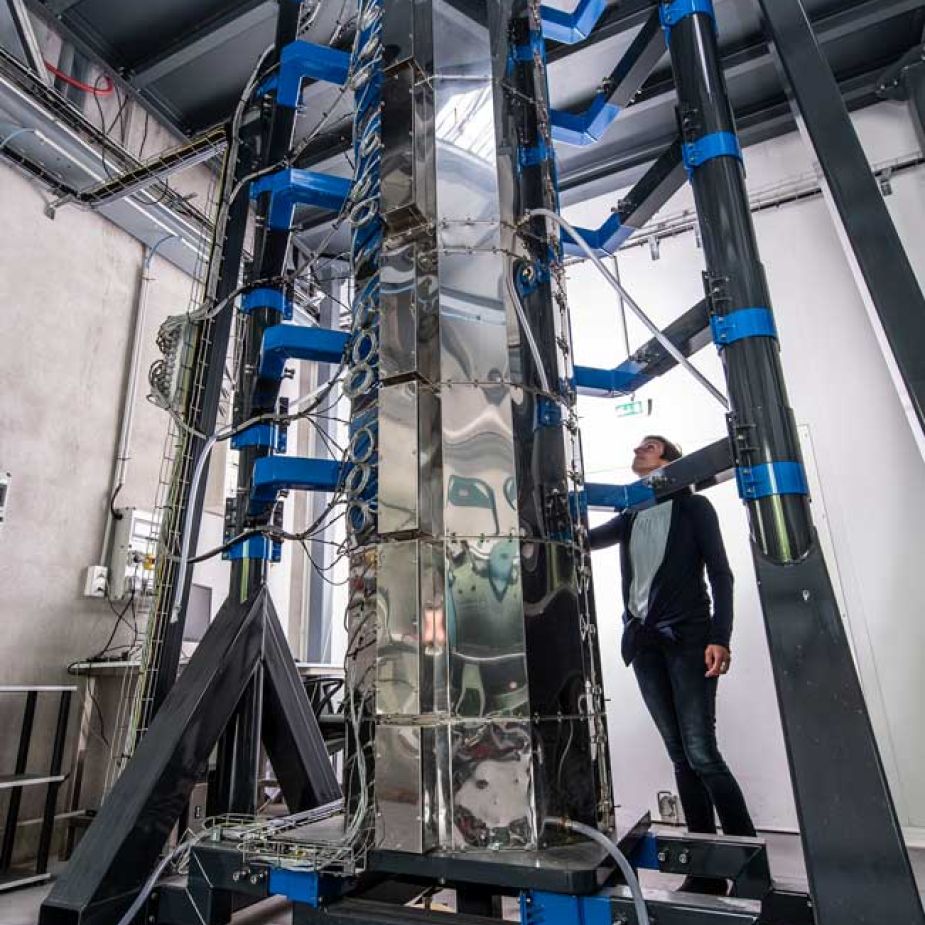

Thanks to hydrothermal synthesis, we master the material from seed to final wafer, offering exceptional purity, controlled orientations, and reproducibility.
Our crystals are optimized for ultra-stable oscillators, SAW resonators, inertial navigation, and radiation-resistant devices.

Why choose CRYSTALINNOV?
  • - European manufacturer, securing supply chain independence
  • - Customized products : very high-quality quartz
  • - IEC 60758 compliant
  • - Radiation-hardened quartz for space applications
  • - Expertise in specific orientations (AT, SC, Z, X, custom cuts)
